COMPLETE COOLING MODULE
LL-08B
Thermoelectric Water Cooling Module
Compressor-free cooling engineered for real dispensing capacity.
LL-08B brings the main cooling components into one 0.8 L module: dual thermoelectric coolers, cold-pipe conduction, heat-pipe heat rejection, forced airflow and dual NTC sensing.
130 ±10 Wrated input at 25°C after 5 minutes
DC 12 / 24 VTEC series / parallel configuration
165×115×308 mmmodule envelope
1.45 kgnet weight per module
A complete product view, followed by engineering detail

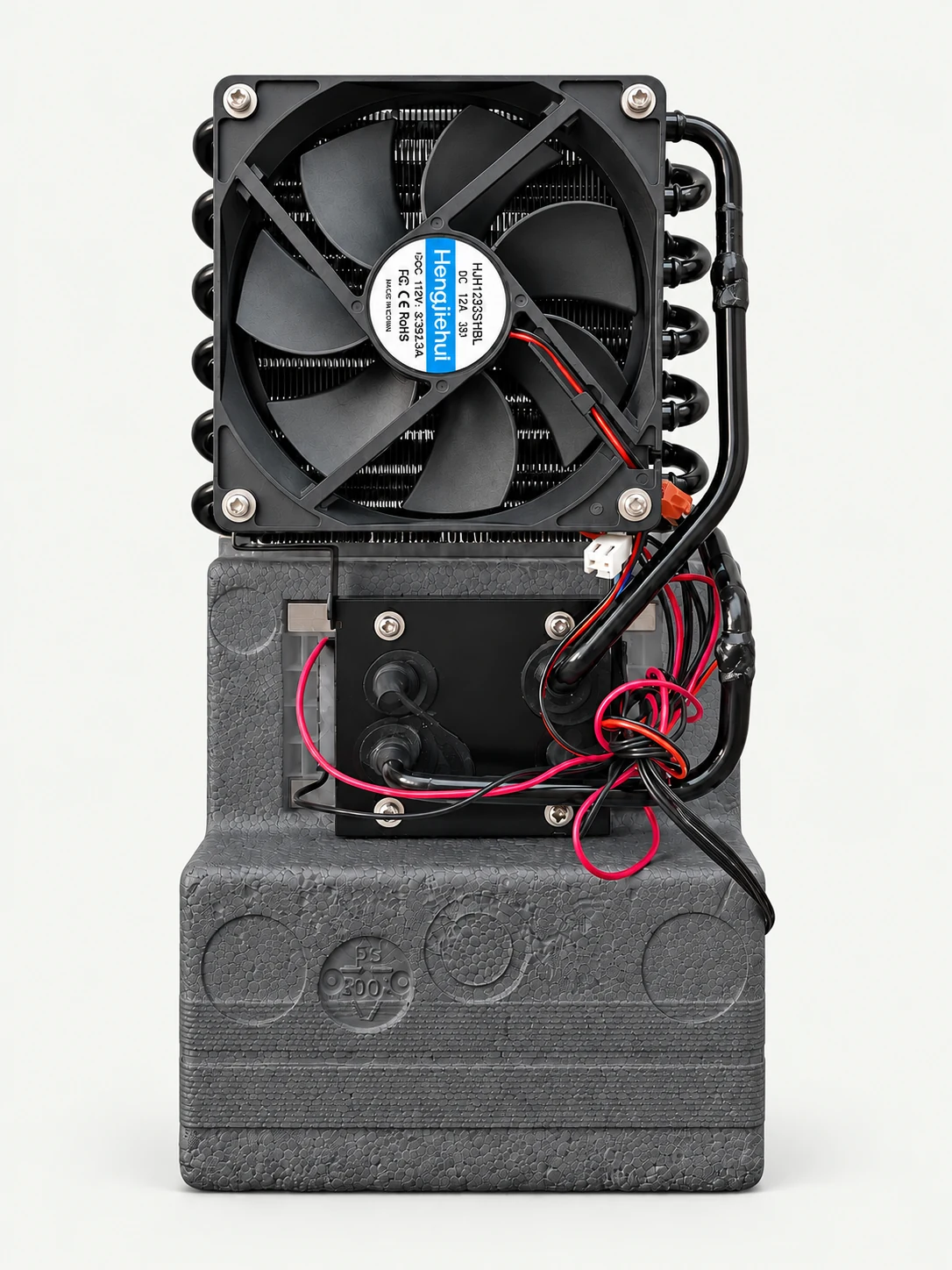

The main image shows the full assembled module. Additional views explain its construction, interface positions and installation envelope.
01 · Complete productIn / out φ11AirflowDrain φ7.503 · Ports & installation
165 × 115 × 308 mm4 × φ3.304 · Dimensions & mounting

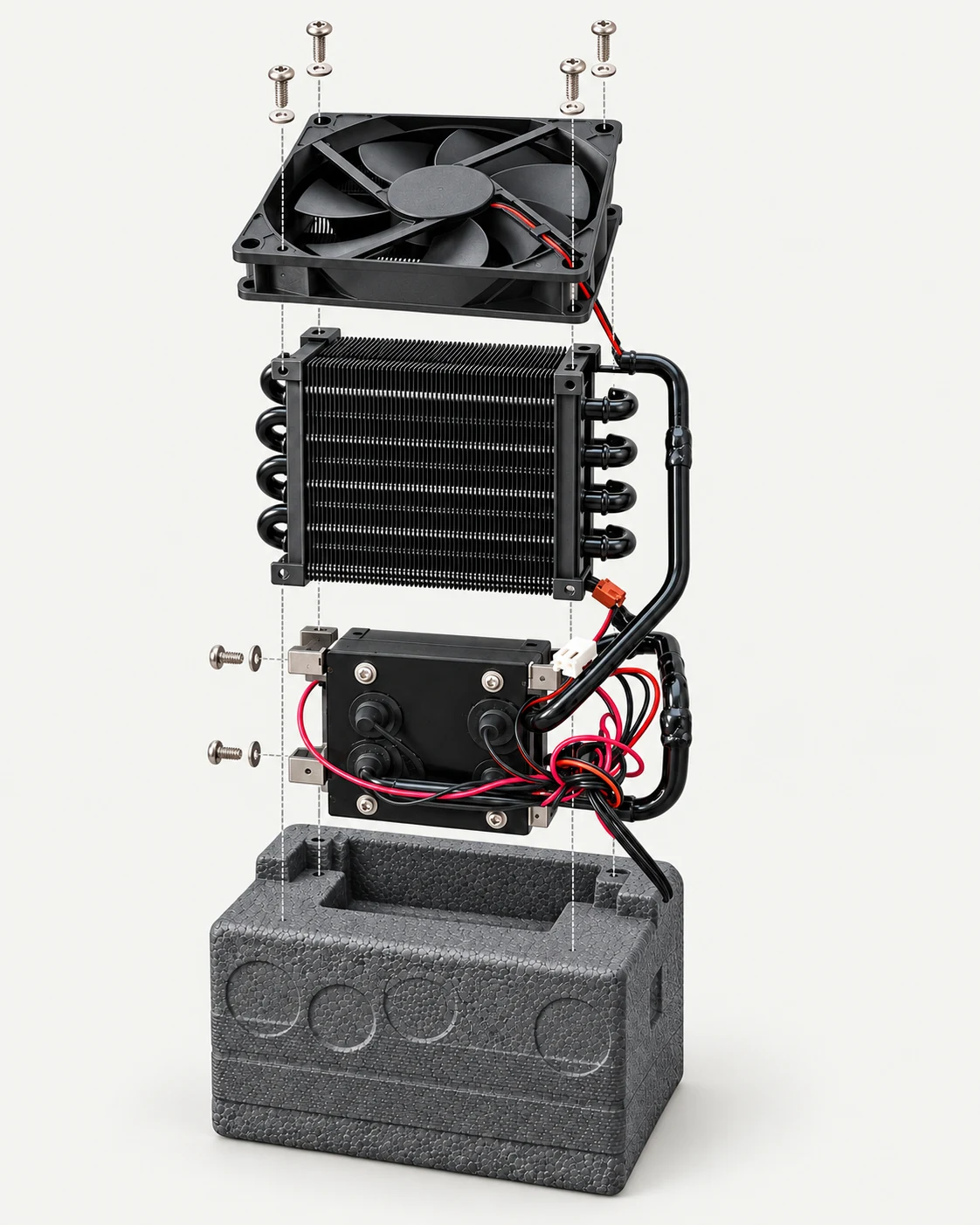

05 · Exploded structure
06 · Test conditions
Published performance, with conditions
Performance numbers need their operating conditions.
Published hourly output is measured with 25°C ambient temperature, 25°C inlet water, rated electrical input and unobstructed fan inlet and outlet. The initial draw is excluded.
A complete thermal path for cold-water dispensing
Dual TECs move heat away from the insulated tank. Cold-pipe conduction distributes cooling at the water side, while the heat-pipe condenser and fan reject heat to the appliance airflow. Dual NTC sensors support temperature monitoring.
0.8 L cold tank
→Dual TEC
→Heat-pipe condenser
→Forced airflow
Interfaces and installation envelope
In / out φ11AirflowDrain φ7.5165 × 115 × 308 mm4 × φ3.3
Published specification
| Model | LL-08B |
|---|---|
| Product type | Complete thermoelectric water cooling module |
| Tank capacity | 0.8 L |
| Cooling devices | Dual 12706 TEC |
| Rated input | 130±10 W |
| Noise | <35 dB |
| Dimensions | 165×115×308 mm |
| Net weight | 1.45 kg |
| Sensors | Two B3950 / 10K NTC sensors |
| Mounting holes | 4×φ3.3 |
LL-08B integration questions
Is LL-08B a complete cooling module?
It includes the insulated 0.8 L tank, dual TECs, cold-pipe conduction, heat-pipe condenser, fan and dual NTC sensors. The appliance provides the correct power supply, water connections, mounting and cabinet airflow.
Does it always deliver more than 2 L/h below 10°C?
The specification states this output under 25°C ambient and inlet-water temperature, rated input and unobstructed airflow, with the first draw excluded.
Can the fan airflow be restricted?
No. The fan inlet and outlet must remain unobstructed. Restricted airflow can reduce cooling capacity.
Review LL-08B against your cabinet and draw cycle.
Share the installation space, inlet-water temperature, target cold-water temperature, draw pattern, power configuration and airflow arrangement.
